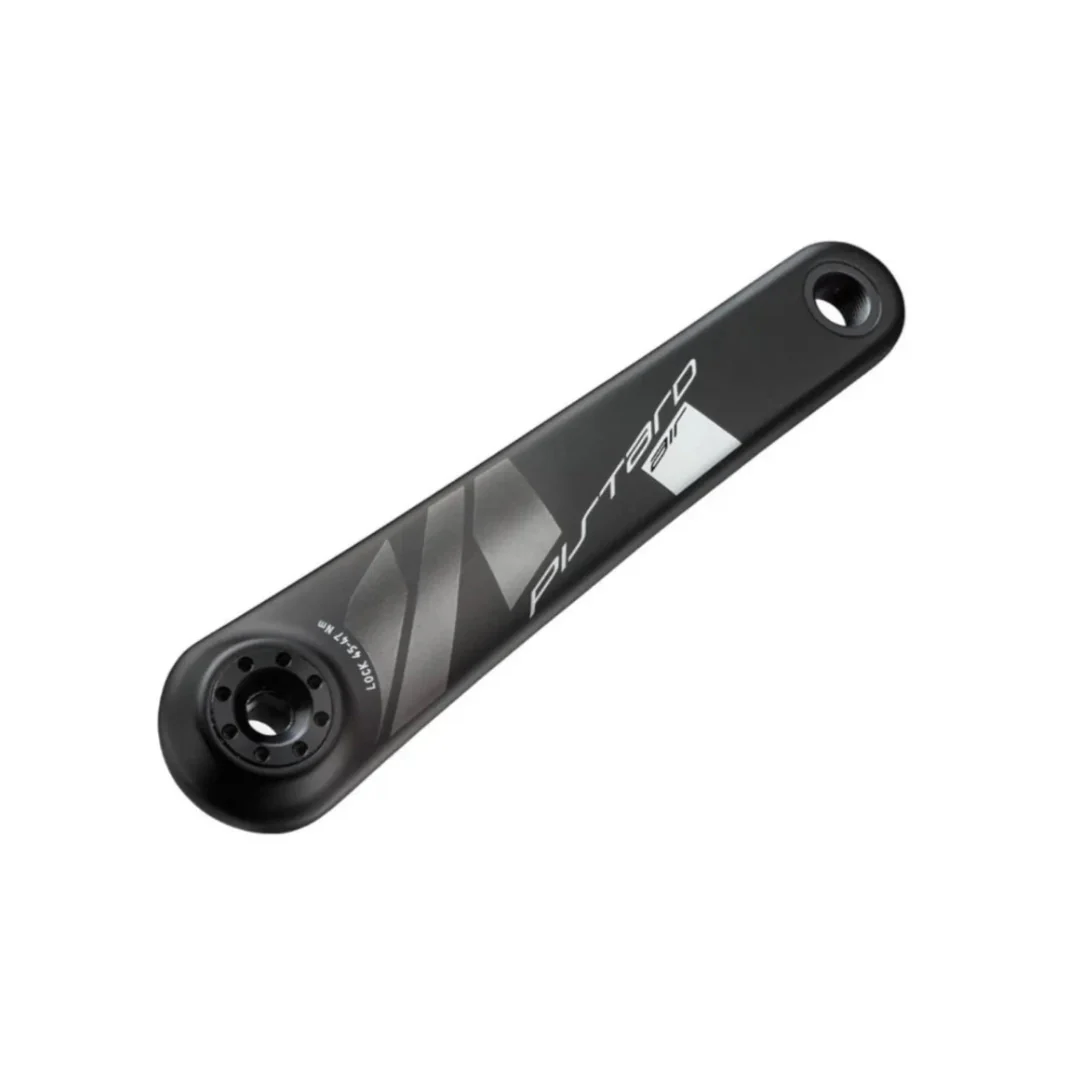

Introduced to the track market in 2017, the Miche Pistard Air crankset has been designed to enhance rigidity and aerodynamics with an integrated 24mm Evo Max axle & outboard bearing bottom bracket system.

The Pistard Air is a more aerodynamic version of the Miche Pistard 2.0 crankset with seamless linkage between crank, chainring and bottom bracket.

Available in 165mm and 170mm lengths with a 49t x 1/8" chainring.

Miche Evo Max bottom bracket is required and sold separately.



FYI: "Pistard" translates to "track cyclist" or "track racer" in English, referring to a cyclist who competes in velodrome events. The term is used in several languages, including French, Italian, and Dutch. There, you learned something today.

Specifications

• 144mm bcd

• forged 6082-AL arms w/  7075-AL T6 chainring (1/8")

• length: 165mm, 170mm

• chainline: 42mm

• color: black

• weight: 785g (165mm)

Installation instructions

An instruction manual is included with the crankset, but we're posting it here too because proper installation is critical.

Miche Pistard Air/Pistard 2.0 Installation Manual

If you break the included non drive-side compensator ring during installation or service (and you probably will because they break very easily), a 1mm bottom bracket cup spacer can be used in its place. Do not use this crankset without the compensator ring or spacer of equal thickness.
